Images

Basic image insertion

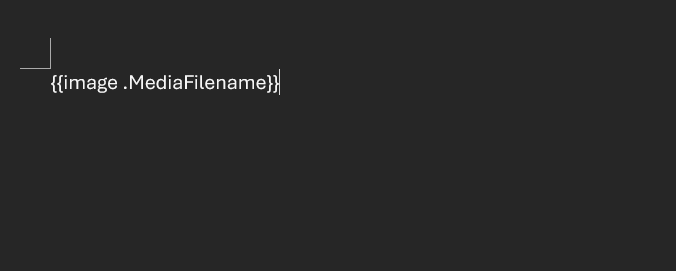

Input file template.docx:

Golang code:

package main

import (
	"fmt"
	"os"

	gotemplatedocx "github.com/JJJJJJack/go-template-docx"
)

type ExampleStruct struct {
	MediaFilename string
}

func main() {
	docxTemplate, err := gotemplatedocx.NewDocxTemplateFromFilename("template.docx")
	if err != nil {
		fmt.Println("Error loading template:", err)
		return
	}

	filename := "example.jpg"

	bytes, _ := os.ReadFile(filename)

	templateValues := ExampleStruct{
		MediaFilename: filename,
	}

	docxTemplate.Media(filename, bytes)

	err = docxTemplate.Apply(templateValues)
	if err != nil {
		fmt.Println("Error applying template values:", err)
		return
	}

	err = docxTemplate.Save("template_output.docx")
	if err != nil {
		fmt.Println("Error saving output file:", err)
		return
	}
}

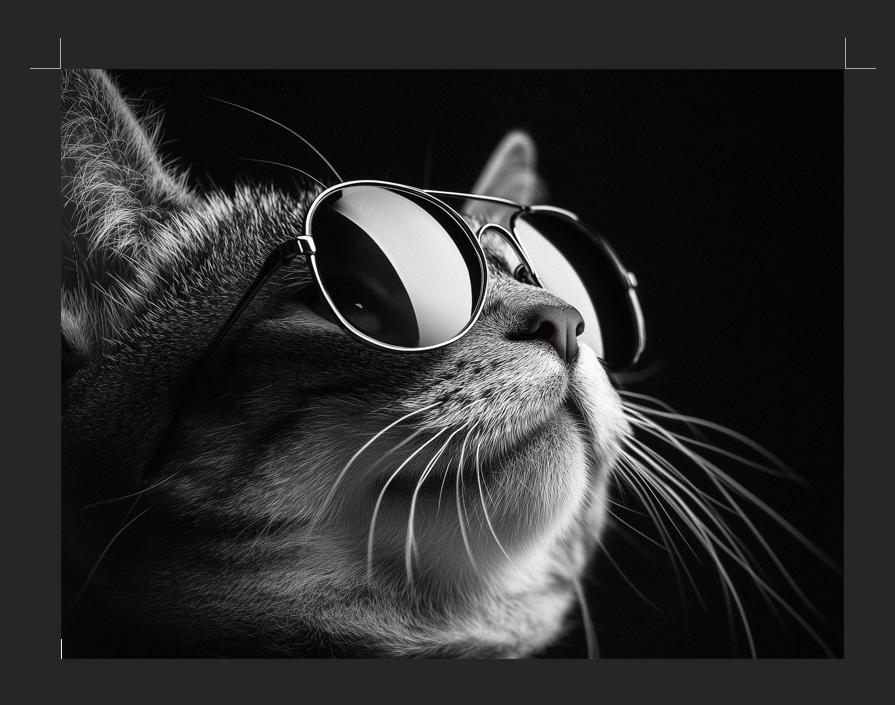

Output file template_output.docx:

Image alignment

The insert image automatically inherit alignement from its placeholder.

Image styles

Border styling is provided with 2 options for now:

Style	Accepted tokens
Border Color	borderColor:<hex>,bc:<hex>
Border Width	borderWidth:<size>,bw:<size>

Pass border options to image to set an inserted image's border color and width:

{{image .MediaFilename "borderColor:#FF0000" "borderWidth:2"}}

borderColor accepts a six-digit hexadecimal RGB value, with or without a leading #. Its default is black (#000000). borderWidth sets the border width in points and defaults to 1. The bw option is an alias for borderWidth.

Defaults are used when one option is provided without the other.

Replacing images

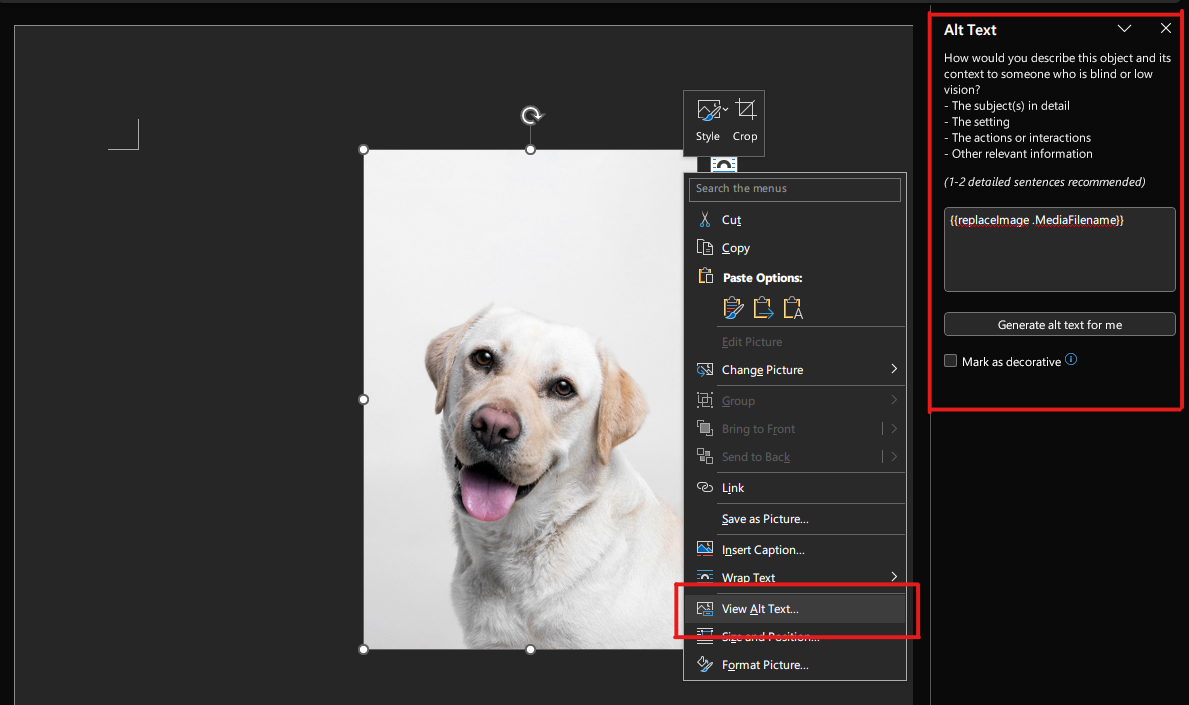

To replace an existing image it's a little different, you need to put the template action inside the image's Alt Text property:

Input file template.docx:

Golang code:

package main

import (
	"fmt"
	"os"

	gotemplatedocx "github.com/JJJJJJack/go-template-docx"
)

type ExampleStruct struct {
	MediaFilename string
}

func main() {
	docxTemplate, err := gotemplatedocx.NewDocxTemplateFromFilename("template.docx")
	if err != nil {
		fmt.Println("Error loading template:", err)
		return
	}

	filename := "cat.jpg"

	bytes, _ := os.ReadFile(filename)

	templateValues := ExampleStruct{
		MediaFilename: filename,
	}

	docxTemplate.Media(filename, bytes)

	err = docxTemplate.Apply(templateValues)
	if err != nil {
		fmt.Println("Error applying template values:", err)
		return
	}

	err = docxTemplate.Save("template_output.docx")
	if err != nil {
		fmt.Println("Error saving output file:", err)
		return
	}
}

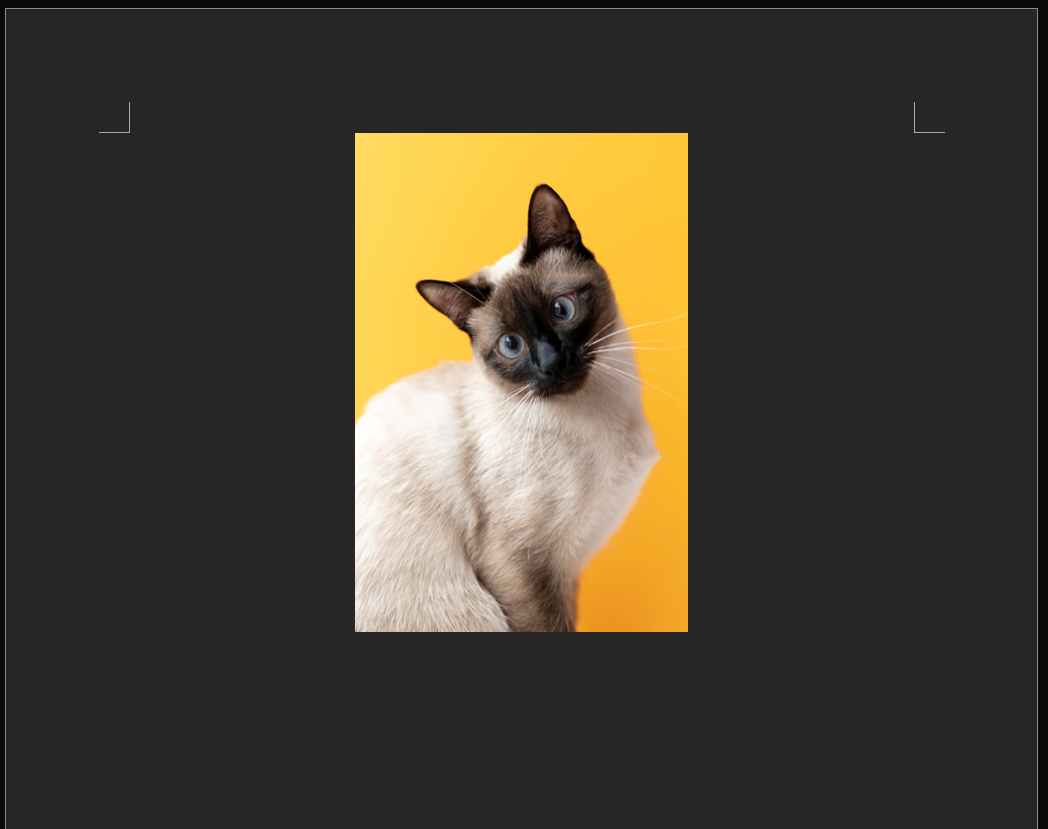

Output file template_output.docx:

Image replacement

The original image sizes are preserved when replacing images.
